Camera System Description

The camera system for combustion processes – FLAME VIEWER  consists of the following parts:

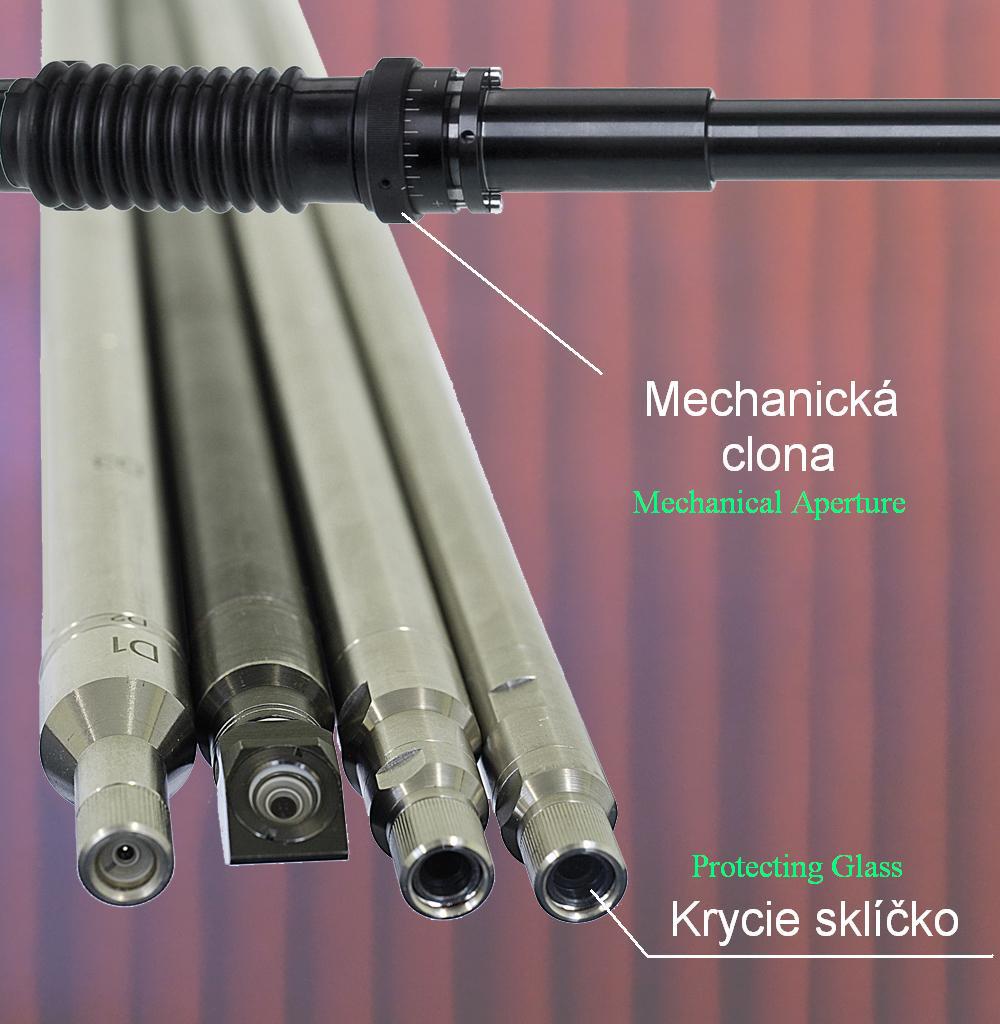

Boroscope (endoscope) is an optical system, consisting of a lens system for transmitting the video image to the chip camera, located outside of the high temperature scope.

Provides cooling of the boroscope with optics and blowing off windscreen in order to prevent dirt accumulation and minimize abrasion.



 CAMERA BOX



• The camera itself, or eventually 2 cameras in two-channel-system
• Mechanical aperture, focusing device
• Mechanical linkage with optical axis camera chip adjustment
• Electronics for the thermal load analysis
• Industrial connector
